Downloadable CAD Files For Classical & Modern Mouldings - Kuiken Brothers Stock Historic Crown, Casing, Base Profiles

The following collection of moulding profiles are in-stock, exclusively at Kuiken Brothers. You may download these CAD files to generate your architectural millwork elevations. Specifying these unique stock profiles ensures easy access for installers as they will not be delayed waiting for custom moulding knives to be produced. Yes, we do ship these moulding to residential and commercial projects nationwide. There are no minimum quantities and no quantity is too large for us to supply, including hotel and commercial projects. For more information regarding an upcoming project or to receive actual profile samples, please contact Ryan Mulkeen directly (201) 705-5375 or rmulkeen@kuikenbrothers.com

KB Entire Classical Mouldings Collection

Kuiken Brothers offers number of tools to assist in the specification of residential and commercial millwork packages. The three primary design tools are:

, we have created two different sections on our site where you can download CAD drawings of Kuiken Brothers Classical Moulding Collection in .DWG, DXF as well as .PDF format. We have also created a number of full room combinations for guidance on how you can combine different crown, casing and base mouldings from a particular style and still maintain proper scale and proportion.

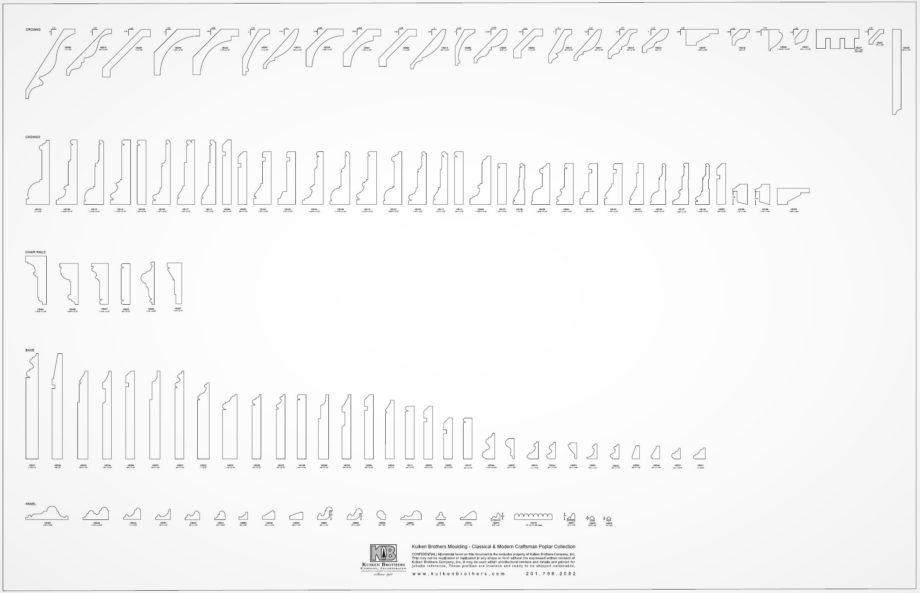

Download the complete collection (contains all crown, casing, base, chair rail and miscellaneous profiles) or individual CAD files

Choose a link below to download CAD files for each collection

Early American Moulding Collection

Georgian Moulding Collection

Federal Moulding Collection

Greek Revival Moulding Collection

Colonial Revival Moulding Collection

Traditional Revival Moulding Collection

Download full room moulding packages as individual CAD files (contains matching crown, casing and base mouldings)

We have created six different full room packages within our Moulding Design Guide which will allow you to download complete combinations of crown, casing, base moulding and chair rail.  These packages were all designed to ensure proper scale and proportion.  These options should help save you time so that you can easily incorporate the designs into your plans. Feel free to customize them to add or remove profiles to meet your clients needs.

AVPageView 582013 103036 AM



Choose a link below to download CAD files from our Moulding Design Guide

Early American Moulding – Full Room CAD Files

Georgian Moulding – Full Room CAD Files

Federal Moulding – Full Room CAD Files

Greek Revival Moulding – Full Room CAD Files

Colonial Revival Moulding -Full Room CAD Files

Traditional Revival Moulding – Full Room CAD Files





Over 75

Kuiken Brothers’ Moulding Design Guide (www.kuikenbrothers.com/mouldingdesignguide) is a digital resource featuring detailed interior elevation drawings of over seventy five unique moulding combinations, including full room packages, cornice combinations, coffered ceilings and mantles designs using profiles from our in-stock Moulding Collection. Detailed CAD drawings (DWG & DXF) and inspirational photos can be downloaded as you navigate through the various options.

Many of the moulding combinations found within this Moulding Design Guide are created with profiles from our Classical Moulding Collection. These profiles have historic precedent and are based off of classical and traditional designs discovered through our meticulous research of the Library of Congress’s Historic American Building Survey and with the careful oversight of a nationally recognized historic moulding expert. Our goal is to help simplify the millwork selection process and hope you find this to be a useful resource.

20110604-17

Kuiken Brothers in-stock inventory of Classical Moulding are readily available for shipping throughout the United States for residential and commercial projects, including hotels, resorts and institutional projects.

Moulding and millwork can truly make the difference in the overall look and feel of a home. As an architect, designer and installer, you are in a unique position to ensure that the exterior aesthetics and architectural styles are carried to the interior design, so please feel free to take advantage of these services that are available to you from Kuiken Brothers.  These are just starting points for you to incorporate moulding designs into your plans. Once on the jobsite you will have a much better eye for the space so that you can swap out profiles as you see fit.  The entire collection of KB Classical Moulding can also be downloaded as individual CAD files if you want to replace a smaller casing, or crown, etc.

If you have any questions about how to download the CAD files for the KB Classical Moulding collection or the CAD files found within the Moulding Design Guide, please feel free to contact us at any time – Contact: Ryan Mulkeen, Kuiken Brothers Company E rmulkeen@kuikenbrothers.com P (201) 705-5375.
