Downloadable CAD Files For KB Classical Mouldings - Historic Crown, Casing, Base Profiles

The following CAD files represent the complete collection of poplar moulding profiles, in-stock, exclusively at Kuiken Brothers. You may download these CAD files to generate architectural millwork elevations and take your designs to a new level. Specifying Kuiken Brothers unique stock profiles ensures easy access for finish carpenters and installers as they will not be delayed waiting for custom moulding knives to be produced. We also offer a significant advantage to any architect, designer or specifier what works on projects nationwide as we have over 15 years of shipping these moulding profiles jobsite direct, nationwide. Shipping moulding can be difficult for many, but not the team at Kuiken Brothers.

For more information regarding an upcoming project or to receive actual profile samples, please contact Ryan Mulkeen directly (201) 705-5375 or rmulkeen@kuikenbrothers.com

KB Entire Classical Moulding Collection

Downloadable CAD Files For KB Classical Mouldings – Historic Crown, Casing, Base Profiles

To assist in the specification of residential and commercial millwork packages, we have created two different sections on our site where you can download CAD drawings of Kuiken Brothers Classical Moulding Collection in .DWG, DXF as well as .PDF format. We have also created a number of full room combinations for guidance on how you can combine different crown, casing and base mouldings from a particular style and still maintain proper scale and proportion.

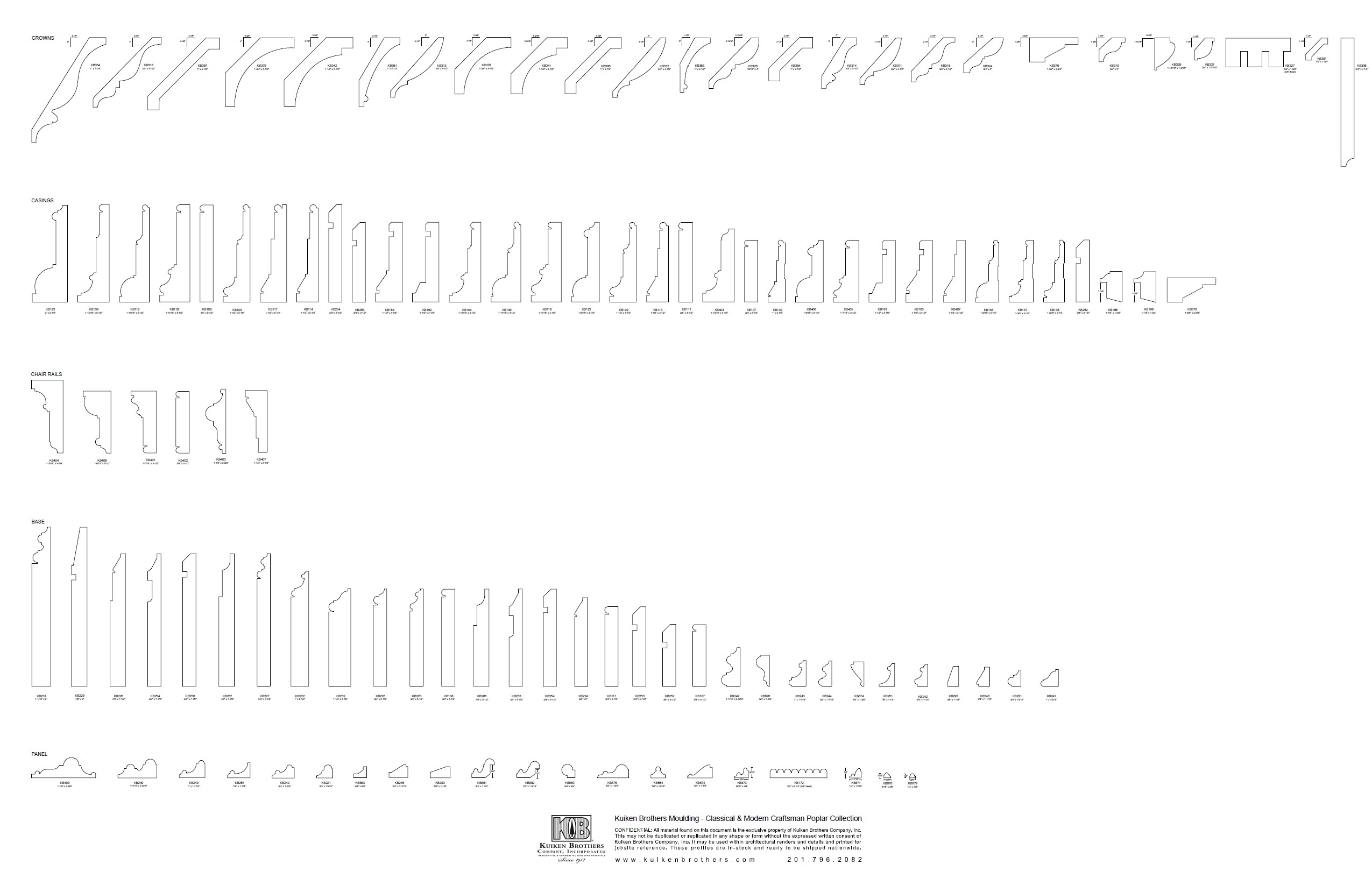

Download the complete collection (contains all crown, casing, base, chair rail and miscellaneous profiles) or individual CAD files

Choose a link below to download CAD files for each collection

Early American Moulding Collection

Georgian Moulding Collection

Federal Moulding Collection

Greek Revival Moulding Collection

Colonial Revival Moulding Collection

Traditional Revival Moulding Collection

Download full room moulding packages as individual CAD files (contains matching crown, casing and base mouldings)

We have created six different full room packages within our Moulding Design Guide which will allow you to download complete combinations of crown, casing, base moulding and chair rail.  These packages were all designed to ensure proper scale and proportion.  These options should help save you time so that you can easily incorporate the designs into your plans. Feel free to customize them to add or remove profiles to meet your clients needs.

AVPageView 582013 103036 AM



Choose a link below to download CAD files from our Moulding Design Guide

Early American Moulding – Full Room CAD Files

Georgian Moulding – Full Room CAD Files

Federal Moulding – Full Room CAD Files

Greek Revival Moulding – Full Room CAD Files

Colonial Revival Moulding -Full Room CAD Files

Traditional Revival Moulding – Full Room CAD Files





Moulding and millwork can truly make the difference in the overall look and feel of a home. As an architect, designer and installer, you are in a unique position to ensure that the exterior aesthetics and architectural styles are carried to the interior design, so please feel free to take advantage of these services that are available to you from Kuiken Brothers.  These are just starting points for you to incorporate moulding designs into your plans. Once on the jobsite you will have a much better eye for the space so that you can swap out profiles as you see fit.  The entire collection of KB Classical Moulding can also be downloaded as individual CAD files if you want to replace a smaller casing, or crown, etc.

20110604-17

Kuiken Brothers in-stock inventory of Classical Moulding are readily available for shipping throughout the United States for residential and commercial projects, including hotels, resorts and institutional projects.

FEATURES & BENEFITS of KUIKEN BROTHERS IN-STOCK POPLAR MOULDING COLLECTION

  • In-stock, 16’ lengths
  • Made in the USA. Milled from Appalachian Poplar, double primed and buffed.
  • Stocked at four of our locations in NJ (Fair Lawn, Emerson, Succasunna, Newark)
  • Every casing has a proportionately scaled 5-1/2” 4-1/2” and 3-1/2” replica, so you can use the larger casings for the first floor and then scale them down on the second floor, but keep the same style (and save your client some money)
  • Every base moulding has a matching base cap so you can create custom height if our stock sizes do not work for you.
  • We have classified each profile by architectural style, matching crown, casing, base and panel profiles to simplify the selection process. Six complete collections – Early American, Georgian, Federal, Greek Revival, Colonial Revival, Traditional Revival and Modern Craftsman. Download Architectural Style CAD Blocks
  • Easier to work with than plaster and a fraction of the cost
  • Complimentary samples available
  • Shipping Nationwide
  • Custom Runs Available (lead times & minimum order quantities apply)
    • 17′ and 18′ length casings for taller doors and windows
    • Custom species available (Mahogany, Cherry, Oak, etc.)
    • Custom Milled Arches & Radius (Poplar (best) MDF (value option)
    • Flexible Moulding
    • PVC, Spanish Cedar for Exterior Applications

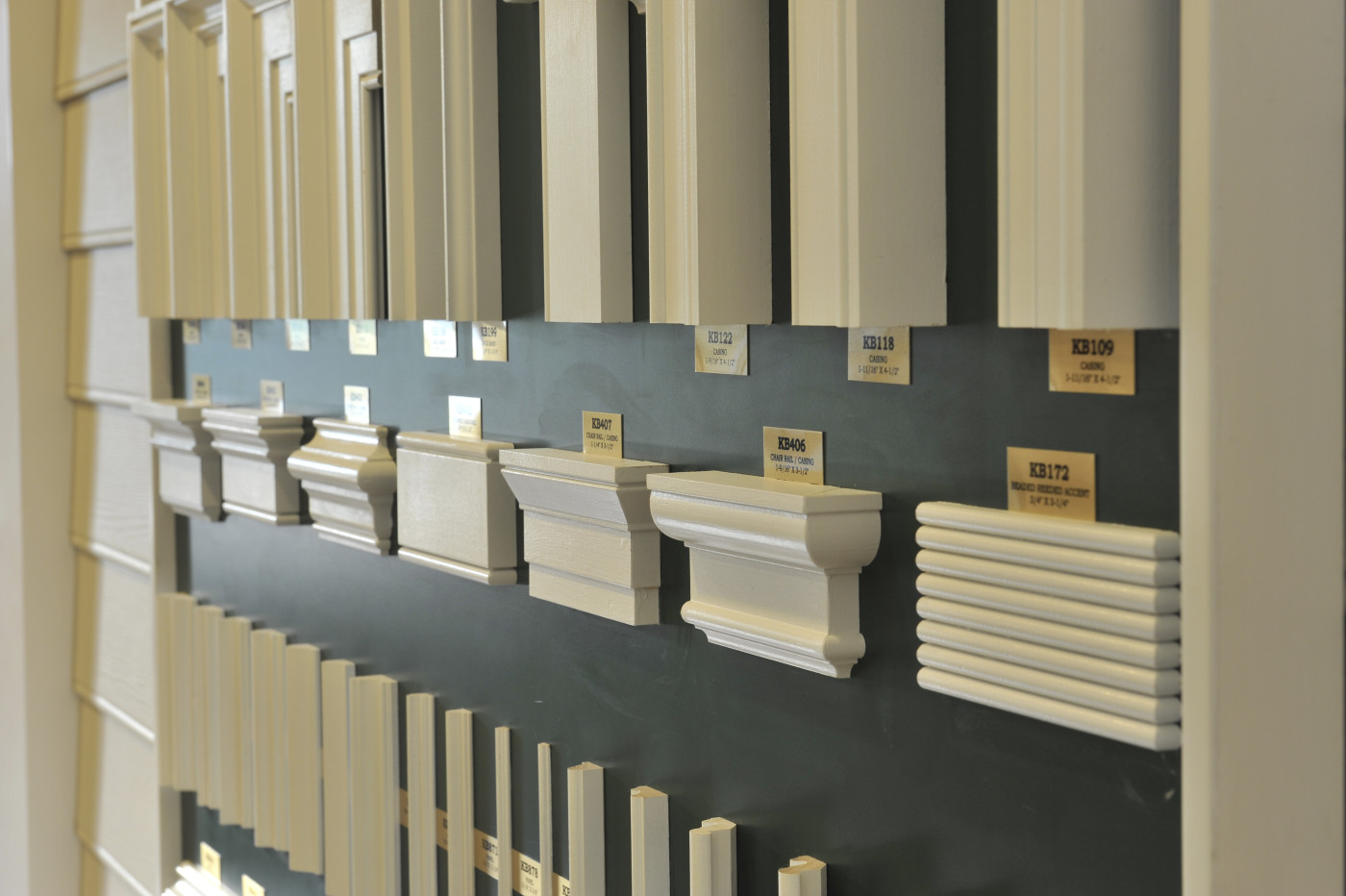

Kuiken Brothers Moulding Crown Casing Base (3)

If the terms Early American, Georgian, Greek Revival, Federal, Colonial Revival or Traditional Revival pique your interest then you will surely find these profiles intriguing. We have been very meticulous in our research and have taken great care in depicting them as historically and architecturally accurate as possible. These are the mouldings which would have been utilized and found in many period homes of the 18th and 19th centuries and have historic precedent in our area, New Jersey, New York and New England regions.

Many of the profiles are available in a range of sizes in order to accommodate different room configurations and ceiling heights. Whether you are renovating a small Cape Cod, building your dream Colonial Revival or stately Georgian home, or simply looking to add a touch of warmth to an office environment, these profiles work well.

As Kuiken Brothers celebrates over 100 years in business, we reflect on the tradesman of yesterday and honor their commitment to craftsmanship, their deep knowledge, skill, and the purity of style evident in their era. Choosing the correct moulding profiles will transform an ordinary room into one with style and beauty. While these craftsmen understood that combining various mouldings produces beautiful results, they also understood that proper moulding selection can have a huge impact on the overall character and value of a home.

To view the entire collection of KB Classical Moulding profiles, click here for our in stock on-line moulding section. If you would like a copy of our Moulding & Millwork Catalogs (Full Line, Classical or Modern Craftsman) to help inspire your millwork package for an upcoming project, fill out our Moulding Catalog Request form and we will mail you a copy right away.

If you would like to discuss the KB Classical Moulding collection for an upcoming project, please send an e-mail to info@kuikenbrothers.com or call (201) 652-1912 and we will follow up with you right away.

If you have any questions about how to download the CAD files for the KB Classical Moulding collection or the CAD files found within the Moulding Design Guide, please feel free to contact us at any time – Contact: Ryan Mulkeen, Kuiken Brothers Company E rmulkeen@kuikenbrothers.com P (201) 705-5375.
